Importing and Customizing Thresholds

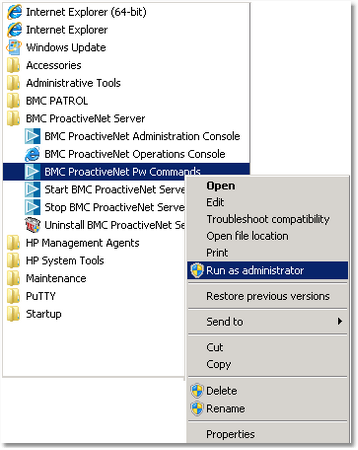

1.Launch the BMC ProactiveNet PW Commands. On Windows 2008, you need to run the PW Commands as Administrator.

Launching BMC ProactiveNet PW Commands

2.Execute the following command line:

pw adapter -type patrol -get_thresholds <file name> -pproxy_host <hostname|ipaddress> [-pproxy_port <port_number>] [-pproxy_user <username>] [-pproxy_passwd <password>] -i -v

where

        -get_thresholds <file name> = File name with absolute path at which thresholds will be imported

        -pproxy_host <hostname|ipaddress> = Host name or IP Address of Patrol Proxy Server

        -pproxy_port <port_number> = Port at which Patrol Proxy Agent communicates with Patrol Proxy Server

        -pproxy_user <username> = User name of Patrol Proxy user

        -pproxy_passwd <password> = Password to authenticate Patrol Proxy user

        -i = import Instance level thresholds

        -v = run in "verbose" mode, producing extra lines of output during extraction and conversion processes

The command has produced a text file with all the parameter threshold settings.

3.Open the file in a text editor. Check that the global thresholds have been properly interpreted.

4.Then go to the # INSTANCE LEVEL THRESHOLDS section of the file.

5.Uncomment all instance level thresholds for the _PATROL__SEN_MSS_ prefixed instances.

Search the file for the 'NOT_IMPLEMENTED' occurrences to detect thresholds that were not properly converted by the PATROL Adapter.

6.Save the file.

7.Execute the following command:

pw threshold loadpatrolthreshold [<thresholdfilename> [-v]]

where:

         <thresholdfilename> is a thresholds file name. If no file path is specified then the default '<Installation Directory>/pw/tmp/' is used

         -v  enables the Verbose mode

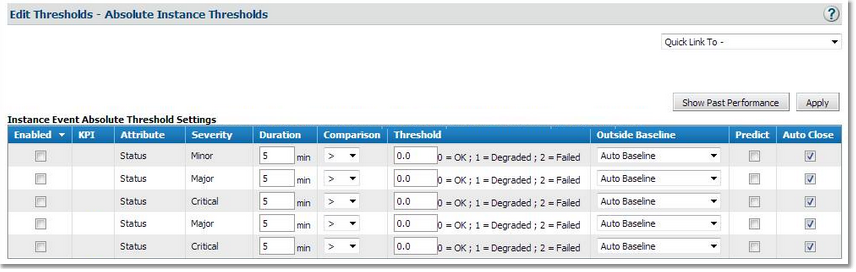

Class-level thresholds can be displayed using the Absolute Global Thresholds panel in the BMC ProactiveNet Operator Console, while instance-level thresholds are displayed in the Absolute Instance Thresholds panel:

Visualizing instance-level thresholds

Thresholds have been successfully imported into BMC ProactiveNet.
