Thresholds

Whenever possible, BMC Performance Manager Express for SharePoint automatically sets thresholds for parameters. If you prefer a more fault-tolerant monitoring, you can modify the thresholds of each parameter through the Configure tab > Edit Thresholds.

1.	To modify the parameter thresholds of several SharePoint parameters of an element, click on the element icon in the Configure tab > Thresholds, Properties and Credentials > Edit.

To modify the thresholds of a particular instance, click on the instance icon > Thresholds, Properties and Credentials > Edit.

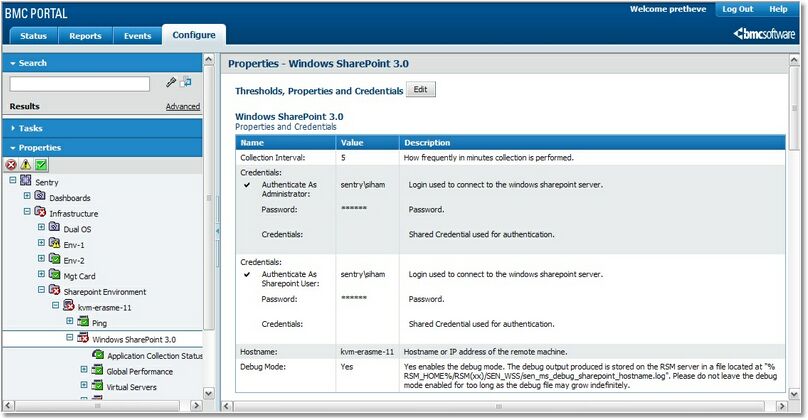

TRESH_Edit

Thresholds, Properties and Credentials

Click Edit to modify the thresholds

Any modification to the thresholds or any other properties of elements created using the "Element Profile" mode is to be done using the Element Profile route or by clicking "Override Profile"

2.	Disable the alert conditions in the Status parameter, i.e. un-check the boxes for Warning and Alarm.

TRESH_Edit_Param

Disabling a parameter default alert thresholds

Disable the alerts on the Status parameter by un-checking the boxes

3.	Enable the alert conditions on the parameter (Total Capacity in the image below) by checking the boxes, and manually enter the threshold values and then click on Save.

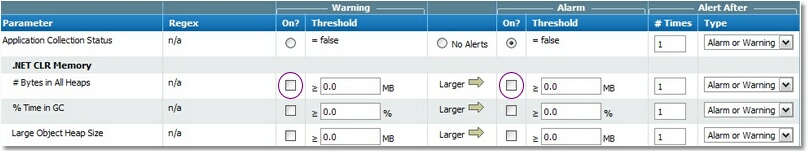

TRESH_Edit_Param_Other

Modifying threshold values

Manually modify the thresholds on the parameter and activate the alerts

4.	The "Success, changes have been saved" message indicates that the modifications have been registered.

Alerts are displayed by the parameter whose thresholds are modified.
