On EMC CLARiiON and VNX storage systems, the statistics need to be enabled to allow TrueSight Operations Management - EMC Storage Monitoring to monitor performance.

Using Navisphere

1.In Navisphere, enable Statistics logging:
Open Navisphere
Right-click the icon for the storage system
Click Properties.
Be sure SP A and SP B are in the Storage Processors section
Click the box for Statistics Logging under the Configuration section
2.For locally attached CLARiiONs, check if authorization info is present
3.Run the dv command from EMC TestSMIProvider. Make sure all arrays are discovered without any errors
4.Make sure performance is turned on in the Profile for storage arrays
5.Make sure there are instances for the CIM_BlockStorageStatisticalData class:
Run Tek-Tools testProvider or EMC’s testSMIProvider
Type ein for command
Type CIM_BlockStorageStatisticalData for Class Name
If no instances are returned, reset EMC Provider
6.Once complete, resume steps 1-3.

noteIf you are using a version older than SMIKit 6.4.2, the EMC SMI-S Provider does not recognize changes in the array when a LUN or RAID Group is created or deleted from Navisphere. It is thus recommended to upgrade your EMC SMI-S Provider to version 6.4.2 or higher to benefit from the auto-synchronization mechanism set by default to one hour after the last update. If you do not upgrade your EMC SMI-S Provider, you will have to run the refsys command from testsmiprovider each time you create or delete LUN or RAID groups from Navisphere.

Using Unisphere

1.Log on to the Unisphere console with the administrator’s account

EnablingStatisticsLogging_Unisphere1

Logging on to the Unisphere Console

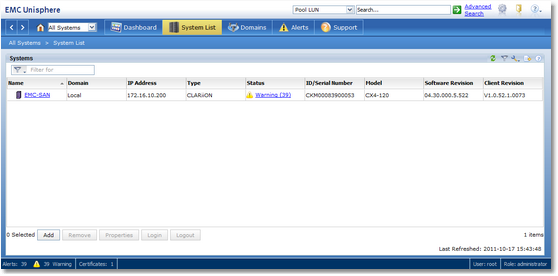

2.Select the array from the System List

EnablingStatisticsLogging_Unisphere2
Selecting the array from the System List

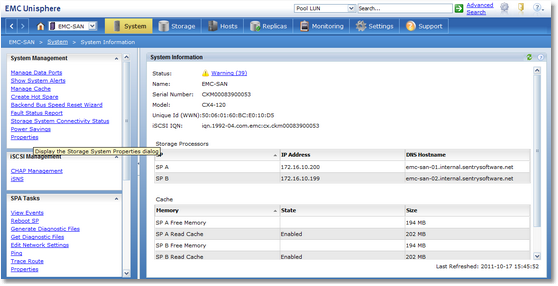

3.Under System Management, click Properties

EnablingStatisticsLogging_Unisphere3

Enabling Statistics Logging

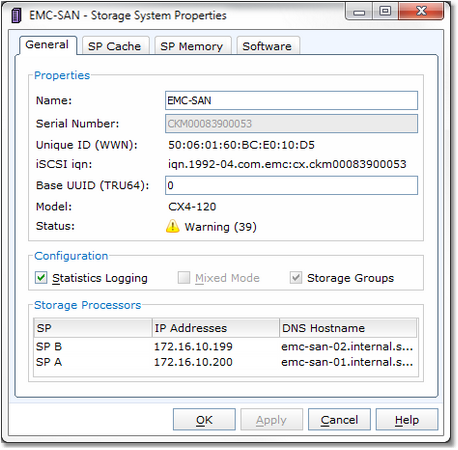

4.In the General tab:
Check the Enable Statistics Logging box
Click Apply
Click OK to finish.
