Disabling Logical Drives Monitoring

 Home  Previous  Next

Discovering and collecting logical drives metrics are resource-intensive actions that can create extra workload on the PATROL Agent and the targeted system. To limit the number of instances created and therefore reduce the system resource consumption, administrators can disable the monitoring of all the logical drives of a system.

To disable logical drives monitoring

1.Right-click the IBM DS3000, DS4000, DS5000 Series KM icon > KM Settings > Disable Logical Drives Monitoring Monitoring...

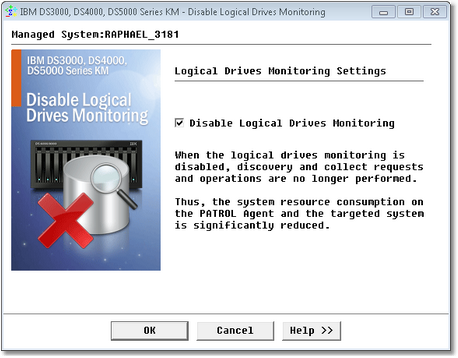

Disable_Local_Drives_Monitoring_Checked

Disabling Logical Drives Monitoring

2.Select Disable Logical Drives Monitoring and click OK.

Discovery and collect requests and operations are no longer performed. Logical drives no longer appear in the PATROL Console.

To resume logical drives monitoring

1.Right-click the IBM DS3000, DS4000, DS5000 Series KM icon > KM Settings > Disable Logical Drives Monitoring Monitoring...

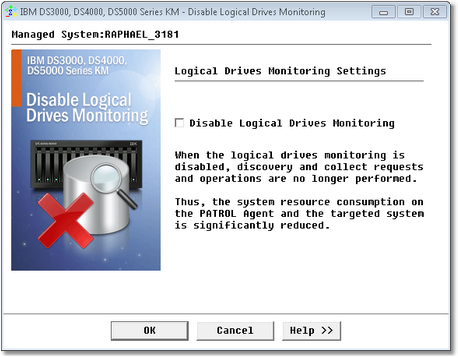

Disable_Local_Drives_Monitoring

Disabling Volumes Monitoring

2.Uncheck the Disable Logical Drives Monitoring option
3.Click OK.
