If you select the Send a basic SNMP trap action:

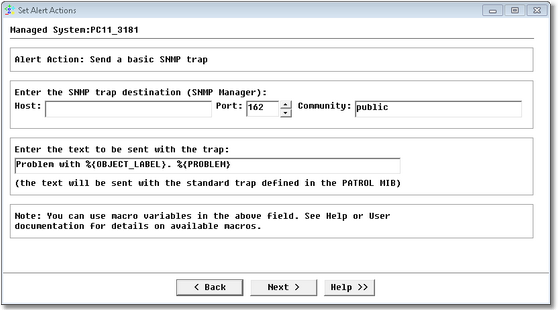

Editing Alert Actions — Alert Action: Send a Basic SNMP Trap
Enter the following:
| • | IP address or Hostname of the SNMP trap destination |
| • | SNMP port and community string |
| • | Text that will be sent in the SNMP trap |
 Upon a failure, IBM DS3000, DS4000, DS5000 Series KM for PATROL will send the trap that is defined in the PATROL MIB (Trap number 11, Enterprise ID: 1.3.6.1.4.1.1031.1.1.2, the text is stored in the 1.3.6.1.4.1.1031.1.1.2.1 OID). You can use macros that will be replaced at runtime. The Alert Actions Macro Variables section states the list of available macros.
See also
Trigger a PATROL event
Annotate the parameter's graph
Execute an OS command
Execute a PSL command
Send a pop-up to the PATROL Consoles
Write a line to a log file
Send a custom SNMP trap (advanced)
Send an e-mail
|
