Discovering and collecting metrics are resource-intensive actions that can create extra workload on the PATROL Agent and the targeted system. To limit the number of instances created and therefore reduce the system resource consumption, administrators can disable the monitoring of any component of a system.
 Note that the monitoring of Volumes and LUNs can be disabled through the user interface, refer to the Enabling/Disabling Volumes and LUNs Monitoring section for detailed information.
 Disabling the monitoring of a Monitor Type (for example NetApp Controller) also deactivates the monitoring of its related Monitor Types (for example NetApp Processor). Before disabling the monitoring of any Monitor Type, refer to the table below to know which related component may be disabled from your monitoring environment.
To disable monitor types

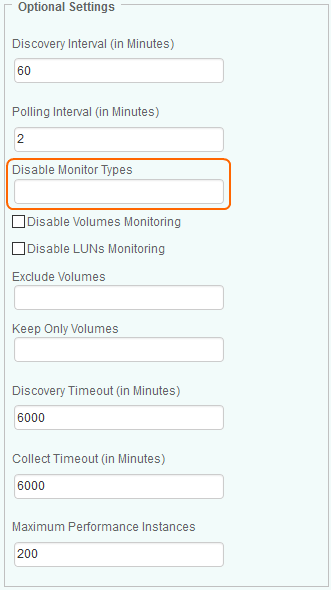

| 2. | In the Add Monitoring Configuration panel, scroll down to the Optional Settings section. |
Enabling/Disabling Monitor Types Monitoring
| 3. | In the Disable Monitor Types field, enter the value corresponding to the component for which you want to disable the monitoring, according to the detailed table below: |
Values must be delimited by commas, for example: Sis,Disk,ClusterDisk ….
|
|
|
|
|
|
Aggregate
|
NetApp Aggregate
|
NetApp LUN
NetApp Qtree
|
Cifs
|
NetApp CIFS
|
N/A
|
Controller
|
NetApp Controller
|
NetApp Host Adapter
NetApp NVRAM
NetApp Ethernet Port
NetApp FC Port
NetApp Processor
NetApp Protocol
NetApp CIFS
NetApp iSCSI
NetApp NDMP
|
Disk
|
NetApp Disk
|
N/A
|
EthernetPort
|
NetApp Ethernet Port
|
N/A
|
Fan
|
NetApp Fan
|
N/A
|
FcPort
|
NetApp FC Pprt
|
N/A
|
HostAdapter
|
NetApp Host Adapter
|
N/A
|
Iscsi
|
NetApp ISCSI
|
N/A
|
IscsiPort
|
NetApp ISCSI Port
|
N/A
|
Ndmp
|
NetApp NDMP
|
N/A
|
Nfs
|
NetApp NFS
|
N/A
|
Nvram
|
NetApp NVRAM
|
N/A
|
Plex
|
NetApp Plex
|
N/A
|
PowerSupply
|
NetApp Power Supply
|
N/A
|
Processor
|
NetApp Processor
|
N/A
|
Qtree
|
NetApp Qtree
|
N/A
|
Quota
|
NetApp Quota
|
N/A
|
Shelf
|
NetApp Shelf
|
NetApp Disk
NetApp Fan
NetApp Power Supply
NetApp Temperature
|
Sis
|
NetApp SIS Volume
|
N/A
|
SnapMirror
|
NetApp Snapmirror
|
N/A
|
SnapVault
|
NetApp Snapvault
|
N/A
|
Temperature
|
NetApp Temperature
|
N/A
|
VFiler
|
NetApp vFiler
|
NetApp Quota
NetApp Volume
|
Voltage
|
NetApp Voltage
|
N/A
|
Cluster Mode
|
ClusterAggregate
|
NetApp Cluster Aggregate
|
N/A
|
ClusterCifs
|
NetApp Cluster CIFS
|
N/A
|
ClusterDisk
|
NetApp Cluster Disk
|
N/A
|
ClusterEthernetPort
|
NetApp Cluster Ethernet Port
|
N/A
|
ClusterFan
|
NetApp Cluster Fan
|
N/A
|
ClusterFcPort
|
NetApp Cluster FC Port
|
N/A
|
ClusterHostAdapter
|
NetApp Cluster Host Adapter
|
N/A
|
ClusterIscsi
|
NetApp Cluster iSCSI
|
N/A
|
ClusterIscsiPort
|
NetApp Cluster iSCSI Port
|
N/A
|
ClusterNfs
|
NetApp Cluster NFS
|
N/A
|
ClusterNvram
|
NetApp Cluster NVRAM
|
N/A
|
ClusterPlex
|
NetApp Cluster Plex
|
N/A
|
ClusterPowerSupply
|
NetApp Cluster Power Supply
|
N/A
|
ClusterProcessor
|
NetApp Cluster Processor
|
N/A
|
ClusterQtree
|
NetApp Cluster Qtree
|
N/A
|
ClusterQuota
|
NetApp Cluster Quota
|
N/A
|
ClusterShelf
|
NetApp Cluster Shelf
|
NetApp Cluster Disk
NetApp Cluster Fan
NetApp Cluster Power Supply
NetApp Cluster Temperature
NetApp Cluster Voltage
|
ClusterSis
|
NetApp Cluster SIS Volume
|
N/A
|
SnapMirrorCluster
|
NetApp Cluster Snapmirror
|
N/A
|
ClusterTemperature
|
NetApp Cluster Temperature
|
N/A
|
ClusterVoltage
|
NetApp Cluster Voltage
|
N/A
|
Node
|
NetApp Cluster Node
|
NetApp Cluster Host Adapter
NetApp Cluster NVRAM
NetApp Cluster Ethernet Port
NetApp Cluster FC Port
NetApp Cluster Processor
|
VServer
|
NetApp Cluster Vserver
|
NetApp Cluster LUN
NetApp Cluster CIFS
NetApp Cluster iSCSI Port
NetApp Cluster NFS
NetApp Cluster Qtree
NetApp Cluster Quota
NetApp Cluster SIS Volume
|
| 4. | Click OK to save your settings. |
NetApp Storage Monitoring will not discover or collect performance data for the elements corresponding to the disabled Monitor Types.
|
