NetApp Filers KM for PATROL enables you to generate a report for one or several LUNs:



1.Click the LUNs instance > KM Commands > Reporting > LUNs Activity to access the report settings dialog box.

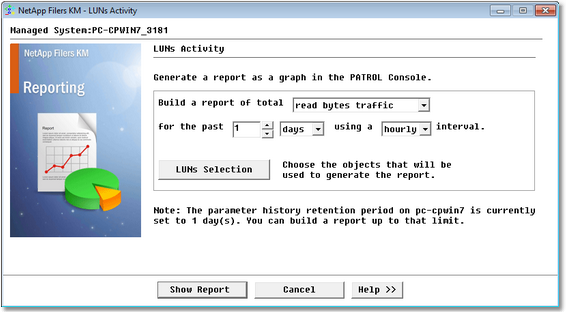

Reporting_LUNs_Activity

LUNs Activity - Report Parameter Selection

2.Select the parameter for which you wish to generate a report.
3.Select the report range and interval.
4.Press the LUNs Selection button and select the specific LUN(s) you wish to include in the report.
5.Click Show Report.
