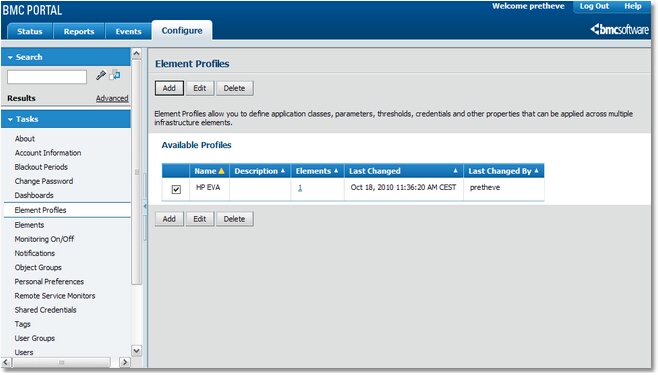

| 1. | In the Configure tab: Click the Element to which you wish to add the HP EVA Performance Manager and the Element Properties page appears. Scroll down to Application Classes > Add. Make sure that the element's platform is defined as Storage. |
Adding an Application Class
| 2. | On the Properties – <Element> – Add Application Classes page > Select Category > Storage. |
| 3. | In the available Application Class list, select the HP EVA application class applicable to the element and click Next. |
Application Class Properties
 The HP EVA application class can only be added to element of type "Storage"
| 4. | The Properties and Credentials page appears asking for the information required for monitoring the disk array. |
| 5. | Thresholds are automatically set by BMC Performance Manager Express for HP EVA. It is recommended that you leave the default thresholds as they are. Click Finish. Details on how to modify thresholds are given in the User Guide. |
You can now return to the Status tab to view the monitoring of the element by BMC Performance Manager Express for HP EVA .
|
