Viewing the Overall Activity of a Disk Array

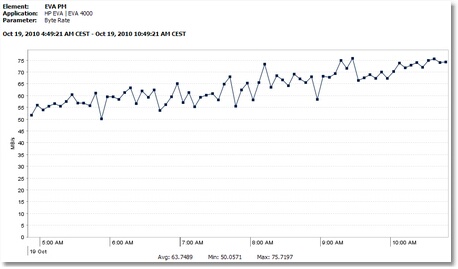

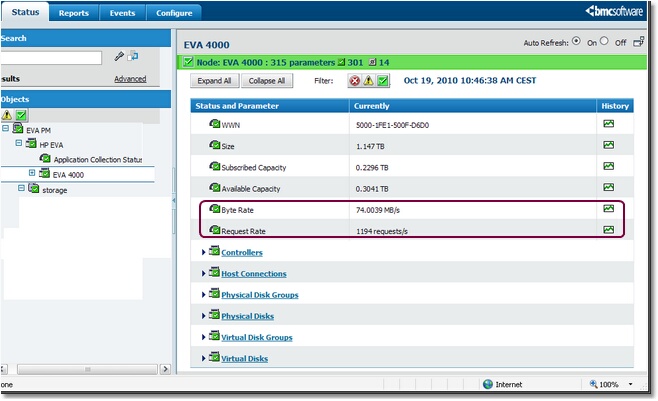

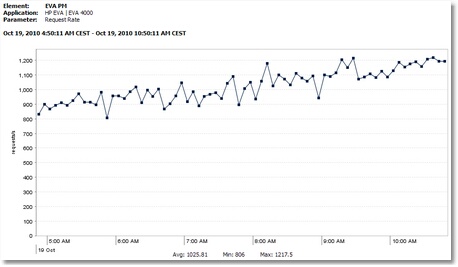

Each disk array connected to and managed by the Storage Server is represented by a node object with two parameters which provide an overall view of the activity of the corresponding array: Request Rate and Byte Rate.

Selecting Disk Arrays' Parameters

In case of slow response times experienced by the hosts, these parameters are the first ones to check to verify if the bottleneck is at the level of the disk array (instead of the HBA, the fiber switch, etc.).
