Disk Groups Activity

EMC Disk Arrays KM for PATROL enables you to generate a report for one or several of the monitored disk groups:

1.	Right-click the KM main icon > KM Commands > Reporting > Disk Groups Activity... to access the report settings dialog box.

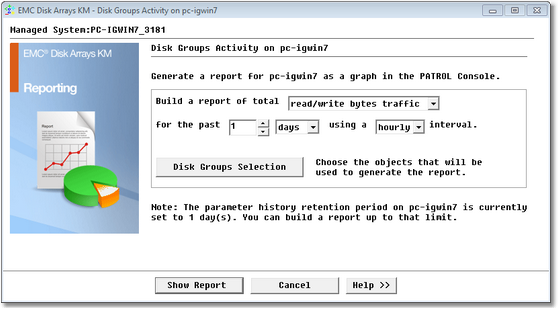

Cmd_Report_Disk_Group

Disk Groups Activity - Report Parameter Selection

2.	Select the parameter for which you wish to generate a report for:

▪	read bytes traffic

▪	transfer bytes traffic

▪	write bytes traffic

▪	read/write bytes traffic

3.	Select the report range and interval

4.	Press the Disk Groups Selection button and select the specific disk group(s) you wish to include in the report. Click Accept.

5.	Click Show Report.

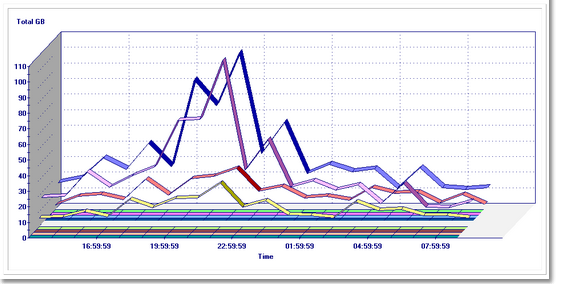

GRAPH_Report_DiskGroup

Disk Groups Activity

You can generate a report directly from a specific disk group:

1.	Click the Disk Group instance > KM Commands > Disk Group Activity...

2.	Select the parameter for which you wish to generate a report for:

▪	read bytes traffic

▪	transfer bytes traffic

▪	write bytes traffic

▪	read/write bytes traffic

3.	Select the report range and interval

4.	Click Show Report.
