EMC Disk Arrays KM for PATROL enables you to generate a report for one or several of the monitored disk:
| 1. | Right-click the KM main icon > KM Commands > Reporting > Physical Disks Activity... |

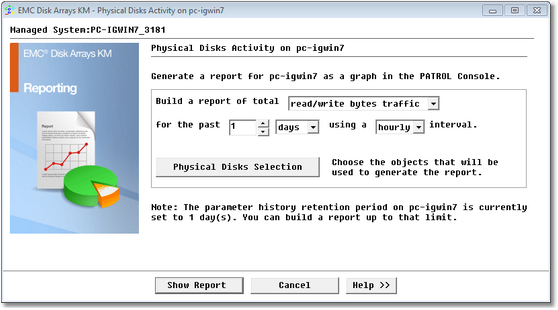

Disks Activity - Report Parameter Selection
| 2. | Select the parameter for which you wish to generate a report for: |
| ▪ | read/write bytes traffic |
| 3. | Select the report range and interval |
| 4. | Press the Physical Disks Selection button and select the specific disk(s) you wish to include in the report. Click Accept. |

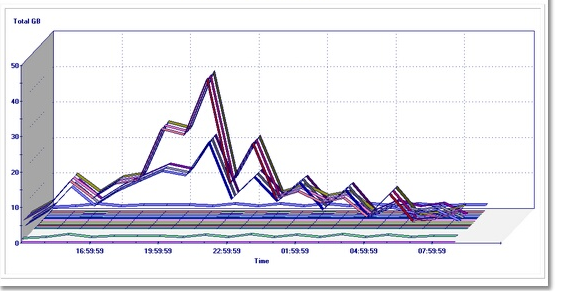

Disks Activity
You can generate a report directly from a specific disk:
| 1. | Click the physical disk > KM Commands > Physical Disk Activity... |
| 2. | Select the parameter for which you wish to generate a report for: |
| ▪ | read/write bytes traffic |
| 3. | Select the report range and interval |
|
