Edit Alert Actions

To modify the Alert Actions executed by IBM DS3000, DS4000, DS5000 Series KM for PATROL upon a failure, right-click on the KM icon > KM Commands > KM Settings > Alert Actions…

Select the Alert Actions to be executed

By default, IBM DS3000, DS4000, DS5000 Series KM for PATROL triggers a PATROL event and annotates the parameter that raises the alert, but there are all the actions that can be triggered:

KMCmd_Alert_Actions_Select

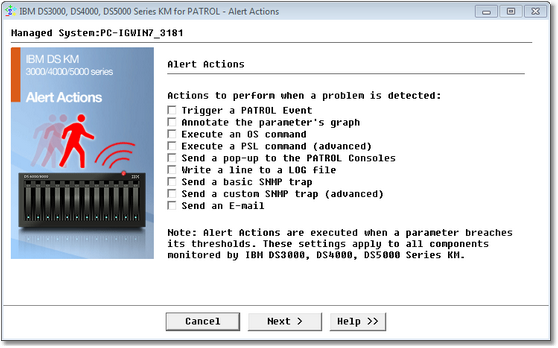

Editing Alert Actions — Selecting Parameters

The available alert actions are:

•	Trigger a PATROL event

•	Annotate the parameter's graph

•	Execute an OS command

•	Execute a PSL command

•	Send a pop-up to the PATROL Consoles

•	Write a line to a log file

•	Send a basic SNMP trap

•	Send a custom SNMP trap (advanced)

•	Send an e-mail

After selecting and defining Alert Actions, you need to validate your changes by clicking the Finish button.

KMCmd_Alert_Actions_Validate

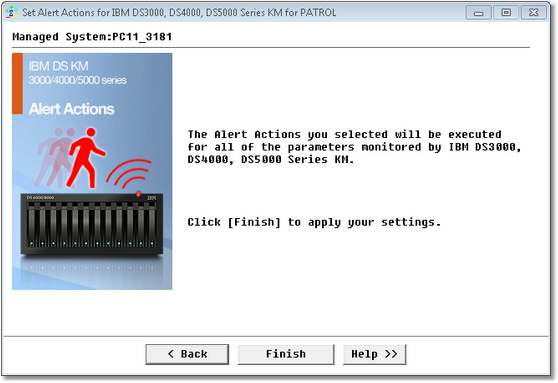

Editing Alert Actions — Validation
