The Backup Configuration feature provides a simple way to save the entire Monitoring Studio configuration by backing it up to a file for later reuse. The configuration saved in a configuration file (.cfg) can then be loaded onto a different PATROL Agent through the PATROL interface. The main benefits are:
| • | It eliminates the trouble of manually configuring Monitoring Studio on another PATROL Agent all over again |
| • | It ensures both configurations are identical |
To back up the entire Monitoring Studio configuration
| 1. | Right-click the main Monitoring Studio icon > KM commands > Configuration > Backup Configuration. |
Backing Up an Entire Monitoring Studio Configuration - Backup Configuration
| 2. | (Optional) Check Include Monitoring Studio global settings if you want the global settings to be included in the .cfg file. |

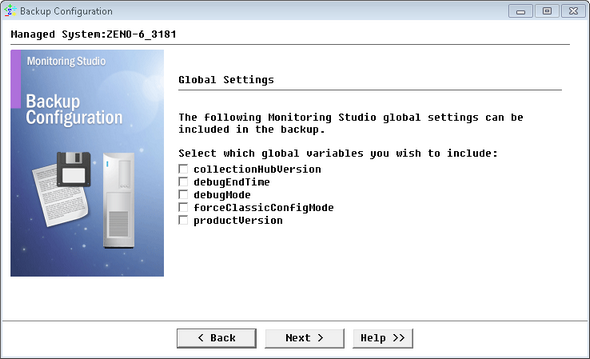

Backing Up an Entire Monitoring Studio Configuration - Global Settings
| 4. | Select the global variables to be included. Please note that global variables will only be displayed if they have previously been configured. |

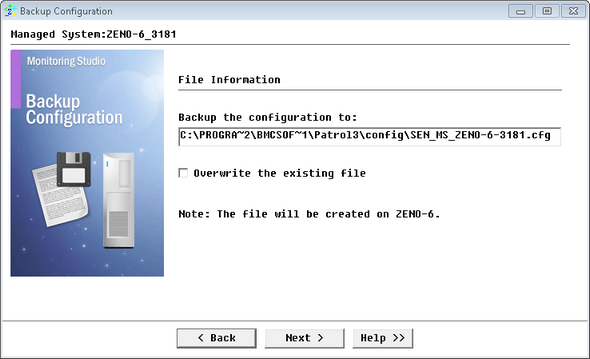

Backing Up an Entire Monitoring Studio Configuration - File Information
| 6. | Enter the path and name of the file on the PATROL Agent system to backup the configuration. By default, the file will be saved on the PATROL Agent. It will be written to SEN_MS_<hostname>-<port>.cfg under %PATROL_HOME%\config on Windows and $PATROL_HOME/config on UNIX systems. |
| 7. | (Optional) Overwrite the existing file: Select this option if the file already exists and you wish to replace it. |
| 8. | Click Next and wait while Monitoring Studio backs up the configuration. |

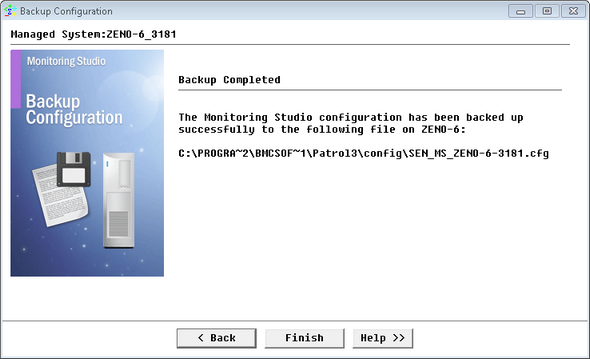

Backing Up an Entire Monitoring Studio Configuration - Backup Completed
| 9. | A confirmation message is displayed once the configuration has been successfully backed up. Click Finish. |
|
