Dynamic Object Templates
String Search, Numeric Value Extractions and Value Map Monitors can help you analyze the Dynamic output of other Monitors (a command, a web page, the result of a SQL query, or WBEM query, etc.). In order to apply this feature to all the Dynamic monitor outputs in a single operation, the Dynamic Object Builder creates Templates instances of the feature. While the standard String Search, Numeric Value Extractions and Value Map functionality applies to a single return output, templates apply to all the Dynamic monitor outputs grouped in the attached Dynamic Container.
To create Dynamic Object Templates
| 1. | In the PATROL Console, right-click the Dynamic Object for which you want to create a template and select KM Commands > New > String Search Template/Numeric Value Extraction Template or Value Map Template... |
| 2. | The wizard corresponding to the option you have selected is displayed. The procedure is the same as the one performed for the standard version of these Monitors. Simply follow the step of the wizard and provide the required information. |
| 3. | Once you have clicked Finish, the String Search Template/Numeric Value Extraction Template or Value Map Template is created in the PATROL Console: String Search Template/Numeric Value Extraction Template or Value Map Template <Display Name> (Template). |
Dynamic Templates
Hiding/Showing Dynamic Templates and Dynamic Object Containers
In order to simplify the visual organization of dynamic instances and dynamic templates, you can choose to show or hide these instances in the PATROL console by using the Dynamic Object > KM Commands > Hide/Show Template feature.

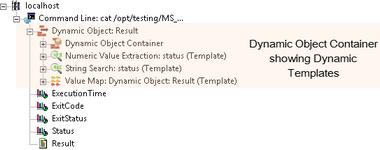

Detailed View
Dynamic instances and dynamic templates are shown.
All dynamic instances for the selected dynamic object are visually attached to the Dynamic Object Container associated to the Dynamic Object Monitor instance. All existing string search, numeric value extraction dynamic templates or value map templates are visible in the Console.
|
|
Simplified View
Dynamic instances and dynamic templates are hidden.
All dynamic instances for the selected dynamic object are visually attached to the Dynamic Object Monitor instance. Any existing string search, numeric value extraction dynamic template or value map template is also hidden.
|
|
|
