To select the process to be monitored from a list:
| 1. | In the PATROL Console, right-click the Host or Monitor Group icon and select KM Commands > New > Monitor... |
| 2. | Select Process from the drop-down list and click Next. |
| 3. | Check Select the process from current process list and click Next. It may take a few seconds for Monitoring Studio to retrieve the list of all the processes currently running on the host. |
| 4. | Click Current processes to display the list of all the processes running on the monitored host. |

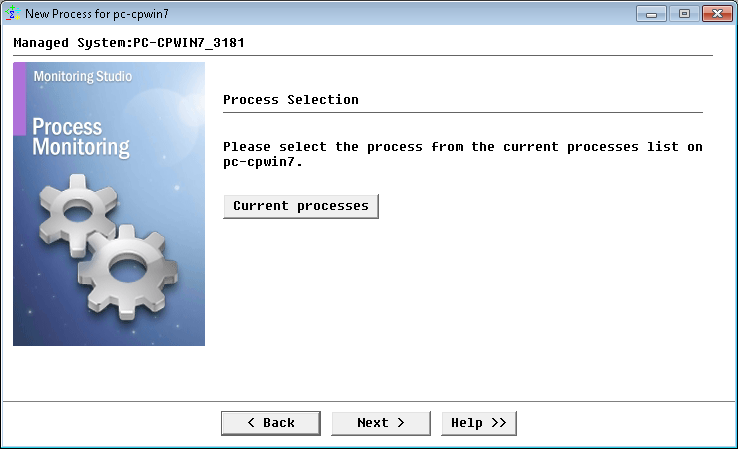

Selecting the Process to Monitor from a List - Process Selection
| 5. | Click the process you wish to monitor and click Accept. |

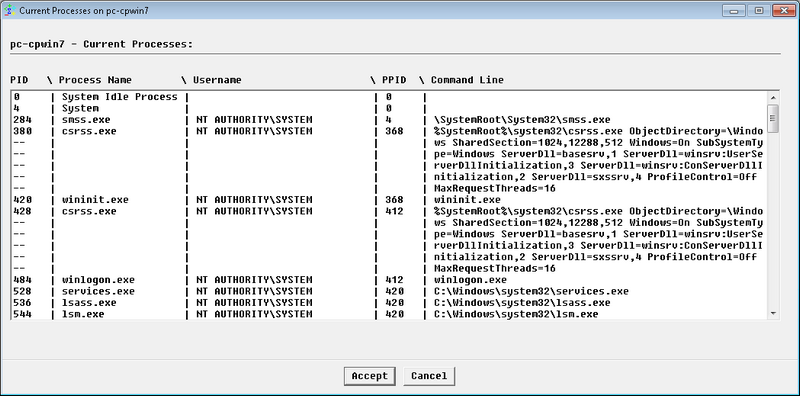

Selecting the Process to Monitor from a List - Current Processes
| 6. | Click Next. The process criteria panel is displayed with all information already filled out. |
Selecting the Process to Monitor from a List - Process Criteria
| 7. | Remove or modify any information you do not wish to monitor and click Next. |
 All fields are optional but at least one field must be completed. The process to monitor must match all the criteria if more than one is specified..
Examples:
|
|
|
Example 1
|
| • | Process name MUST BE EXACTLY patrolagent.exe |
| • | Command-line = <nothing> |
|
PatrolAgent.Exe
C:\Patrol\PatrolAgent.exe -p 3181
C:\Patrol\PatrolAgent.exe
|
Example 2
|
| • | Process name MUST BE EXACTLY patrolagent.exe |
| • | Command-line MUST MATCH THE REGULAR EXPRESSION -[pP] 3181 |
|
C:\Patrol\PatrolAgent.exe -p 3181
|
Example 3
|
|
| • | Process name MUST CONTAIN Pat |
| • | Command-line = <nothing> |
|
PatrolAgent.exe
PatProcess.exe
PatrolPerf.exe
|
To monitor all processes of a selected user, fill out the "Process runs as this user" field and leave "Process name" and "Command-line" empty.
|
