Adding BPM Express for Hardware to an Element Profile
|
Adding BPM Express for Hardware to an Element Profile |
|
|
1.Log on to BMC Portal with administrator credentials. 2.Click Configure tab > Element Profiles. The Available Profiles page appears. Select the Profile to which you wish to add the Hardware class > Edit.

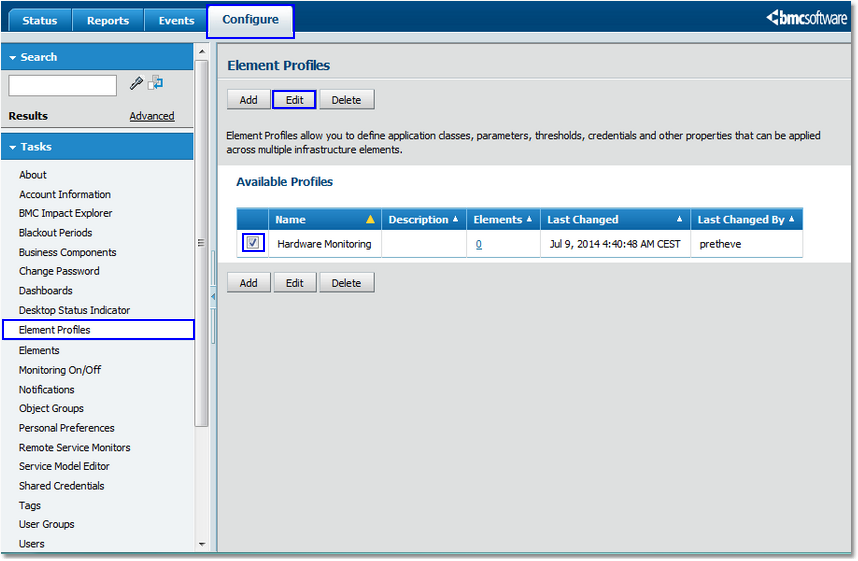

Selecting a Profile 3.The selected Element Profile’s Properties page appears. Go to Application Classes > Add.

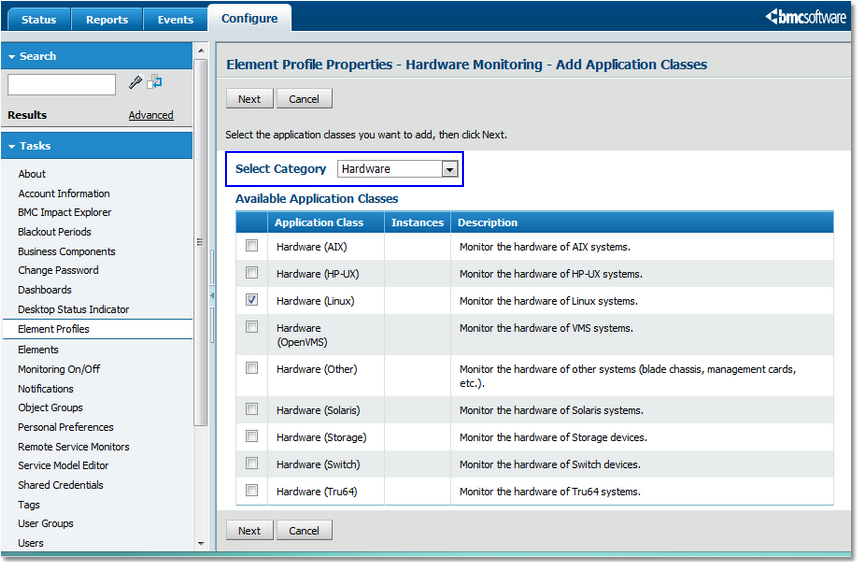

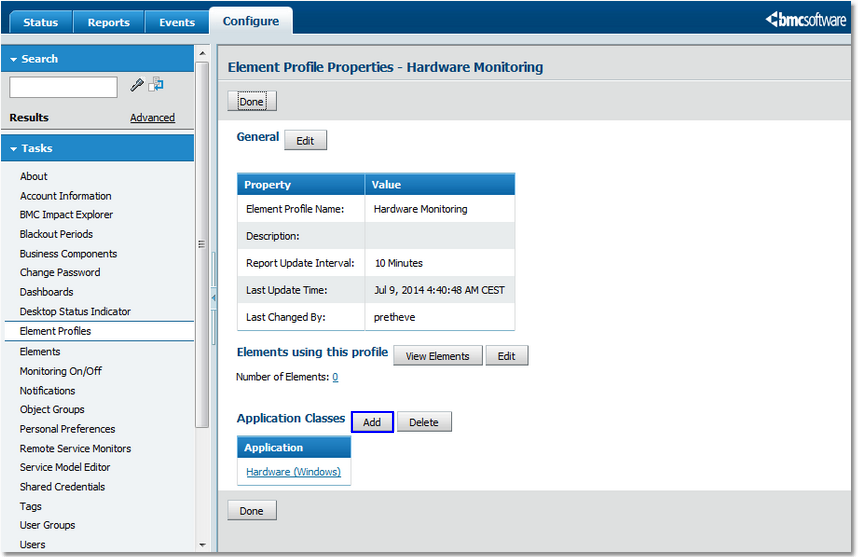

Adding Application Classes 4.The Element Profile Properties – Add Application Classes page appears. Choose Hardware from the Select Category drop-down list.
Selecting the Storage Applicable Class 5.Select the application class applicable to your system and click Next. 6.On the Properties and Credentials page, enter the information required for monitoring hardware (Windows/ Aix,HP-UX, Linux, Solaris and Tru64 systems/Other:Blade chassis, management cards etc.)

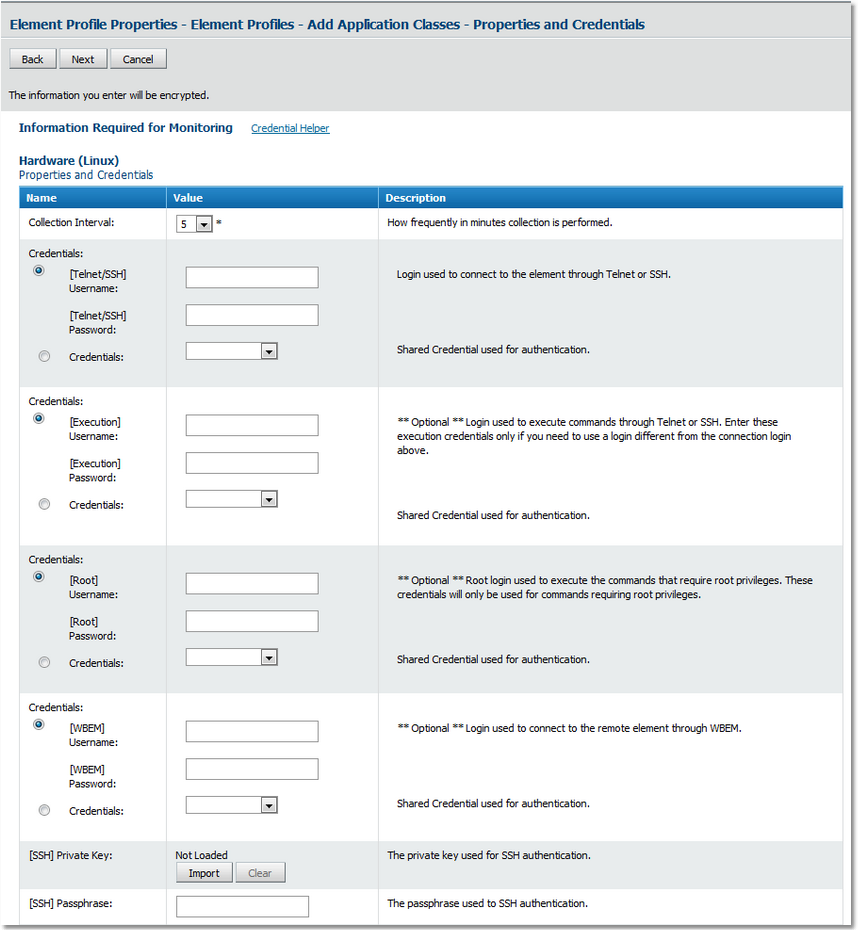

Entering Properties and Credentials 7.Click Next. You arrive at the final step for adding the BMC Performance Manager Express for Hardware application class: Thresholds, Properties and Credentials. 8.Thresholds are automatically set by BMC Performance Manager Express for Hardware. It is recommended to keep the default thresholds (or see the Modifying Parameter Thresholds section). Click Finish.

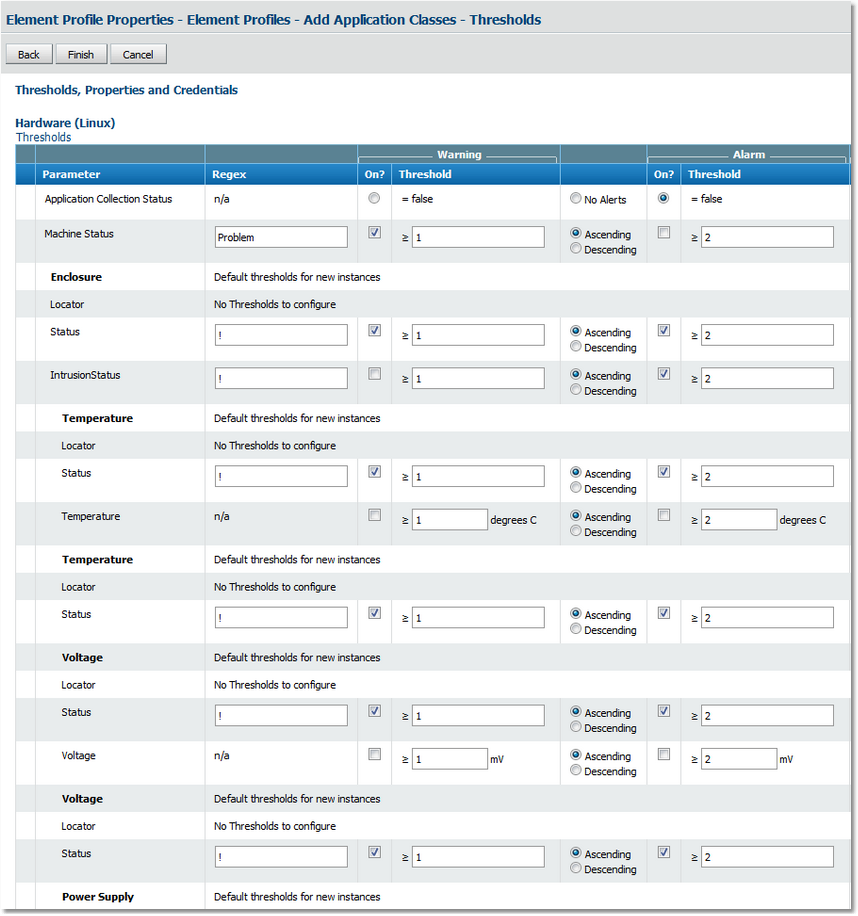

Configuring Thresholds 9.Click Done to save the changes made. The Hardware application class is now added to all the elements in the selected Element Profile. Related Topics Adding the Hardware Application Class to an Existing Element |
