The Multi-Parameter Formula Monitor can monitor all the KMs that are loaded in your PATROL Console. This feature more precisely extracts other KMs' parameter values and computes them with a mathematical formula or a pre-defined PSL function. The returned value can be used to perform additional operations such as converting units, performing correlation, etc.
To create a multi-parameter formula
| 1. | In the PATROL Console, right-click the Host or Monitor Group icon and select KM Commands > New > Monitor... |
| 2. | Select Multi-Parameter Formula from the drop-down list and click Next. |
| 3. | Specify the parameters to use in the formula: |
| ▪ | In the list of parameters currently available on the Agent, select the parameters required (The maximum number of parameters supported by Monitoring Studio is 26) |
 Offline parameters and parameters with no values are displayed as "OFFLINE" in the list. Avoid selecting these parameters if you want your formula to be properly applied.
| ▪ | (Optional) Check the Use the objects display name to build the PATROL IDs option to allow the use of instance labels instead of PATROL IDs to determine a parameter's path. This option may be particularly useful when an object ID is unknown |

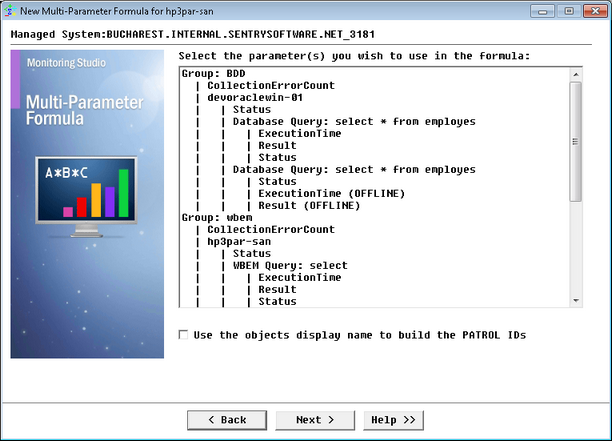

Monitoring a Loaded KM — Parameters Selection
| 4. | Define the formula to apply to the monitored parameter(s): |

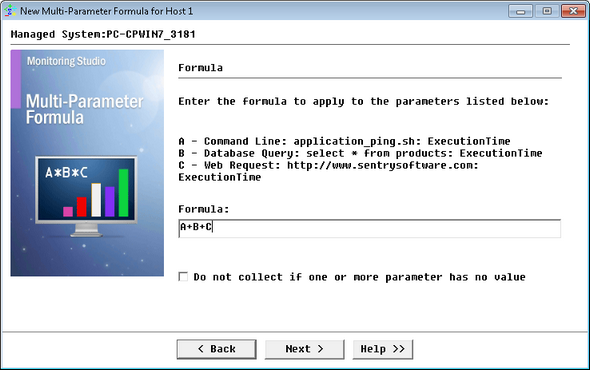

Monitoring a Loaded KM — Defining a formula to apply to the selected parameter(s)
| ▪ | Formula: Enter the formula you wish to apply to the parameter(s). The parameters are identified by a letter listed in the dialog box. Build the required formula using: |
| o | The uppercase letter preceding the parameter (A, B, etc.). |
| o | PSL operators: addition (+), subtraction (-), multiplication (*), division (/) concatenation (.), bitwise (&), etc. |
Examples for predefined PSL functions
To join two different tables from text parameters
The swTableJoin() PSL function is used to join two different tables from text parameters:
swTableJoin(tableA, separatorsA, keyColumnA, tableB, separatorsB, keyColumnB, defaultRightLine, keyType, timeout)
|
where:
| • | tableA is the left table derived from text parameter A |
| • | separatorsA are the separators that separate the columns in tableA |
| • | keyColumnA is the key column number in tableA used for matching the key columns in tableB |
| • | tableB is the right table derived from text parameter B |
| • | separatorsB are the separators that separate the columns in tableB |
| • | keyColumnB is the key column number in tableB used for matching the key columns in tableA |
| • | defaultRightLine (Optional) default rightTable line, when a match is not found |
| • | keyType (Optional) key type such as wbem used by Matsya TableJointClient used by the Java client. |
| • | timeout (Optional) timeout for the table joint query. |
Example:
swTableJoin(A, "|", 1, B, "|", 1)
where:
| • | Table 1 (in parameter A: path1/Result): |
key 1|A|B|C|
key 2|aa|bb|cc|
key 3|1|2|3|
| • | Table 2 (in parameter B: path2/Result): |
key 1|X|Y|Z|
key 2|xx|yy|zz|
key 3|4|5|6|
The returned output is a table that is set to the Result text parameter:
key 1;A;B;C;key 1;X;Y;Z;
key 2;aa;bb;cc;key 2;xx;yy;zz;
key 3;1;2;3;key 3;4;5;6;
|
To find the minimum value among several parameters:
Use the swGetMinimum() PSL function to find the minimum value for the chosen list of parameters (where A and B are number parameters):
To find the maximum value among several parameters:
Use the swGetMaximum() PSL function to find the maximum value for the chosen list of parameters (where A and B are number parameters):
To find the average value among several parameters:
Use the swGetAverage() PSL function to find the average value for the chosen list of parameters (where A and B are number parameters):
The returned output of the swGetMinimum, swGetMaximum, and swGetAverage PSL functions will be displayed by the Value parameter.
 If the formula or parameters entered are not PSL-compatible, an error will be reported by the Group's CollectionErrorCount parameter.
|
| • | Do not collect if one or more parameter has no value: Select this option if you wish to skip the collect when one or more parameters are not populated (usually after a PATROL Agent restart). |
| 6. | Click Finish to start monitoring the selected parameters. The corresponding Multi-Parameter Formula instance (Multi-Parameter Formula: <Display Name>) is created in the PATROL Console. The collected parameters for Multi-parameter Formula Monitors are listed in the SEN_MS_FORMULA chapter. |
|
