Performing a Query on a MySQL Server Database

This section details the various connection settings available for performing queries on a MySQL server database. First steps are common to all database queries and connection methods. They are described in the Analyzing a Database Query chapter.

Configuring a connection to a MySQL server database

1.	Define the Connection Settings to the MySQL server database:

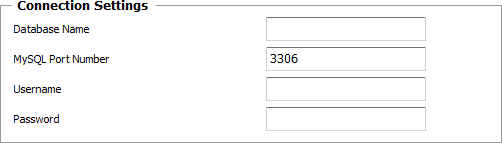

MySQL_Server_Connection_Settings

MySQL Server Database - Connection Settings

▪	Database Name: Enter the name of the database.

▪	MySQL Port Number: Enter the port that will be used to access the MySQL server database.

▪	Username: Enter the username to use to connect to the database.

▪	Password: Enter the password associated with the specified username.

Connection Settings will be shared by all the queries defined within the MySQL Server Monitors.

2.	Define the SQL Query and Timeout properties:

Microsoft_SQL_Server_SQL_Query_Timeout

MySQL Server Database - Query and Timeout Settings

▪	SQL Query: Enter the SQL query you wish to perform.

▪	Timeout (seconds): Specify the time in seconds after which the query will be stopped (Default: 30 seconds). If the query times out, the Status attribute of the Studio Database Query Monitor Type will be set to 2 (Failed) and an alarm will be triggered in TrueSight Operations Management.

▪

Report Errors in Group's "CollectionErrorCount": Select this option to have the Collection Error Count attribute of the Group Monitor reflect possible alerts triggered upon the query execution. The Collection Error Count attribute of the Group reports on the collection errors of all Monitors, associated to the Group, for which this option is available and selected, providing a global view of the collection errors for the whole Group.

3.	Define the Monitor Settings:

▪	Internal ID: Enter an ID to identify the managed MySQL query instance in TrueSight Operations Management.

▪	Display Name: Enter a name to identify the managed MySQL query instance in TrueSight Operations Management.

▪	Optional — Polling Interval: Set the frequency at which the data collection will be performed. Default is 2 minutes.

▪	Optional — Alert Actions: Define the action(s) Monitoring Studio needs to perform when the thresholds for this MySQL query instance is breached.

4.	Optional — Define the Content Processing rules you wish to apply to the MySQL query output:

▪	String Searches: Define the search criteria for a specific string you wish to find or not find in the MySQL query output.

▪	Numeric Extractions: Define any numeric value to be extracted from the MySQL query output.

5.	Click the Add to List button to complete the creation of the MySQL query instance.

6.	Click Close.
