Integration with Prometheus

Prometheus is a monitoring and alerting toolkit developed as a standalone open-source project. The Prometheus ecosystem consists of:

• the main Prometheus server which scrapes and stores time series data
• client libraries
• a push gateway
• exporters for services
• an alertmanager.

Monitoring Studio X users can:

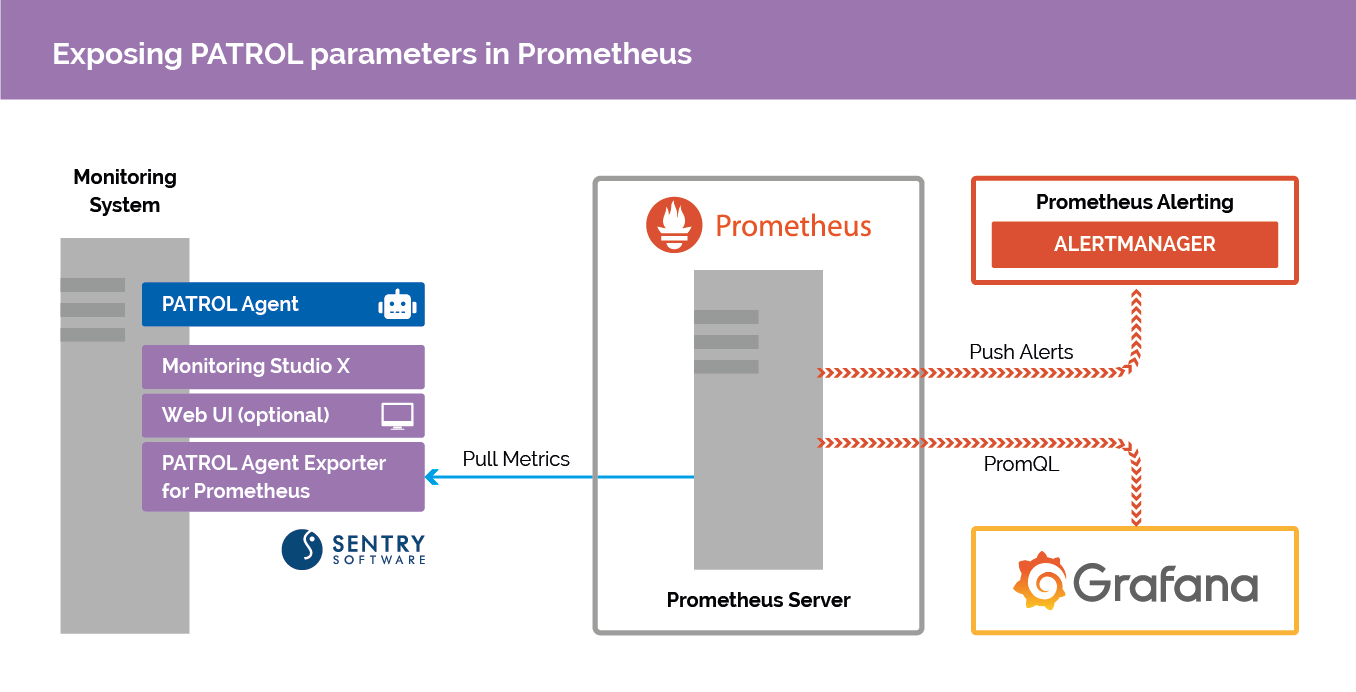

• expose PATROL numeric parameters in Prometheus with the PATROL Agent Exporter for Prometheus

  ![The PATROL Agent Exporter for Prometheus scrapes the PATROL Agent numeric parameters and exposes them to Prometheus](../images/exposing-patrol-numeric-parameters-in-prometheus.png)

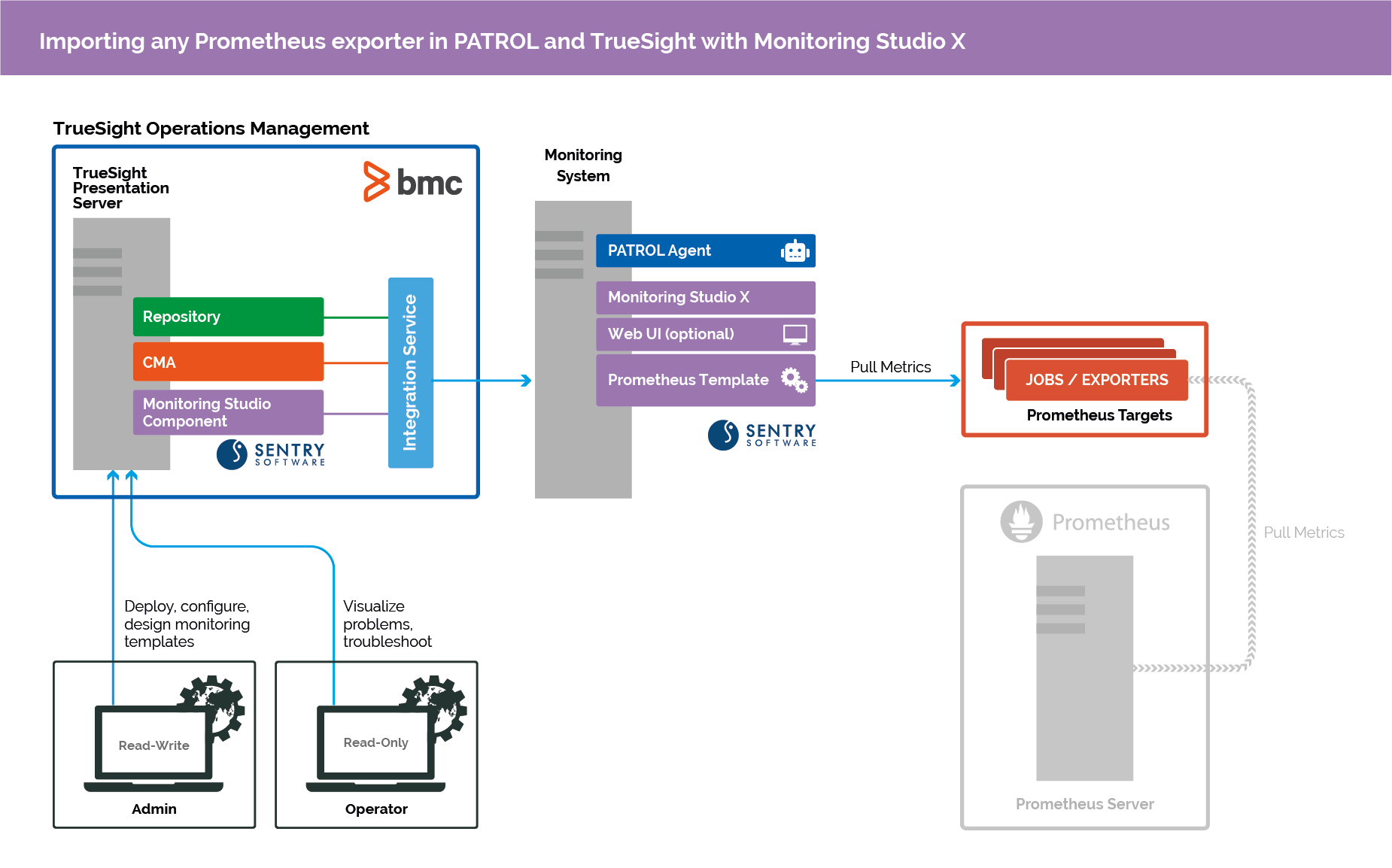

• import any Prometheus exporter to Monitoring Studio X using the prometheusExporterTemplate.cfg template.

   ![Monitoring Studio X and TrueSight consume the metrics exposed by any Prometheus exporter](../images/importing-prometheus-metrics-to-truesight-and-studiox.png)
